1.Graduate School of Engineering,Kobe University,Kobe,Japan;2.System Instruments Co., Ltd.,Tokyo,Japan;3.Department of Biotechnology and Life Science,Tokyo University of Agriculture & Technology,Tokyo,Japan
Abstract:
The authors describe a pipette type of biosensor for detecting target genes and using a zinc finger protein fused to luciferase (ZF luciferase). The ZF protein binds to a specific DNA sequence, and the target double-stranded (ds) DNA can be detected by monitoring the enzymatic activity of ZF luciferase. A small avidin-immobilized reaction plate is placed on a plastic pipette tip (referred to as Biologi tip). The dsDNA detection procedures are carried out by using a programmable dispensing robot equipped with a photodetector. These procedures include (a) the aspiration of an analyte to capture the biotinylated target dsDNA (a product of a polymerase chain reaction) on the small reaction plate inside the pipette tip, (b) the introduction of ZF luciferase and luciferin into the pipette tip, and (c) migration of the pipette tip to the detection port to measure bioluminescence on the small reaction plate. The emission originating from luciferase activity is observed on the reaction plate containing immobilized biotin-tagged target dsDNA, whereas plates containing non-target or biotinylated single-stranded DNA only do not yield a signal. The intensity of emission increases proportionally to the concentration of dsDNA, and the detection limit of the target dsDNA is as low as 62 pM. An actual genomic DNA sample from Escherichia coli O157 was successfully detected by this automatic analyzer using the Biologi tip equipped with a reaction plate. This indicates that this system has a large potential for practical applications, including in particular point-of-care analyses in hygiene control, food safety testing, and clinical diagnosis.

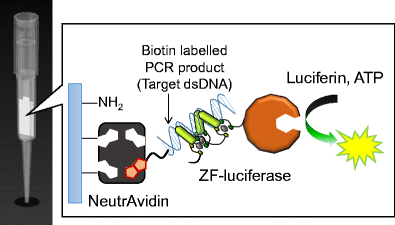

Graphical abstract A pipette-type biosensor was developed to detect target genes using a luciferase-fused zinc finger protein, where a small NeutrAvidin-immobilized reaction plate was placed on the tip, and the biotinylated target double-stranded DNA was detected by monitoring the bound luciferase activity.
